TECHNICAL SPECIFICATIONS
80Km/h
Top Speed
6KW
Rated Power
12KW
Peak Power
72V 50Ah
Battery
72V(DC)
Rated Voltage
12Km
Range
30MM
Ground Clearance
APP Connection
Assistant Functions

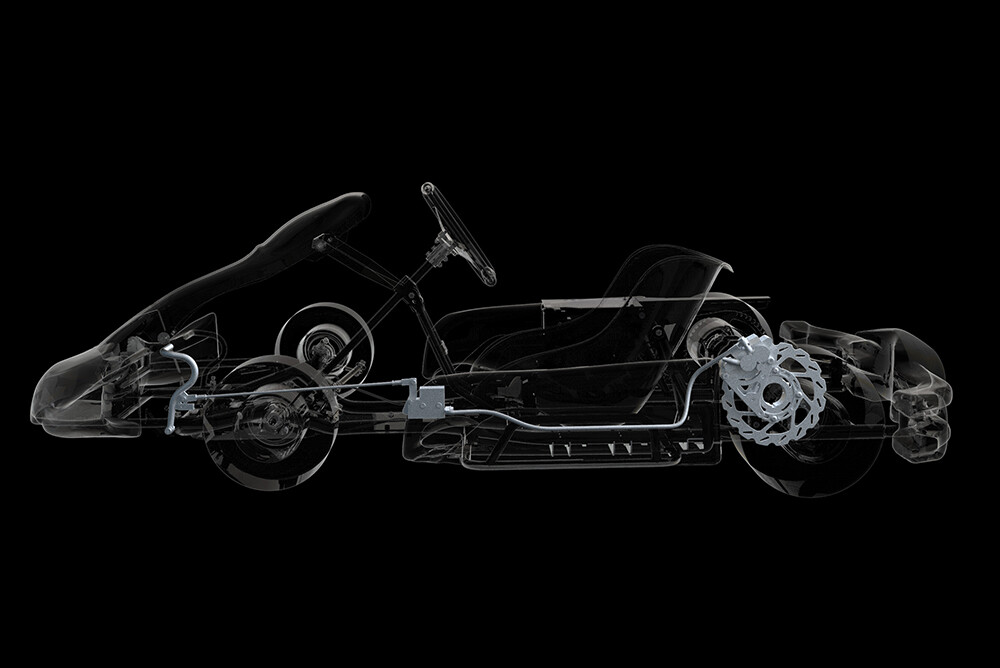

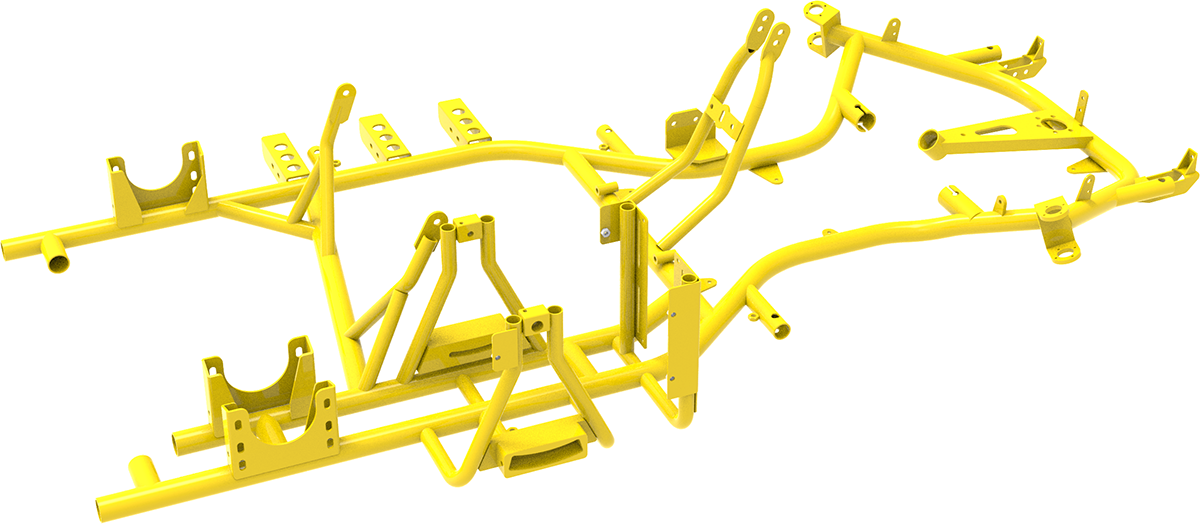

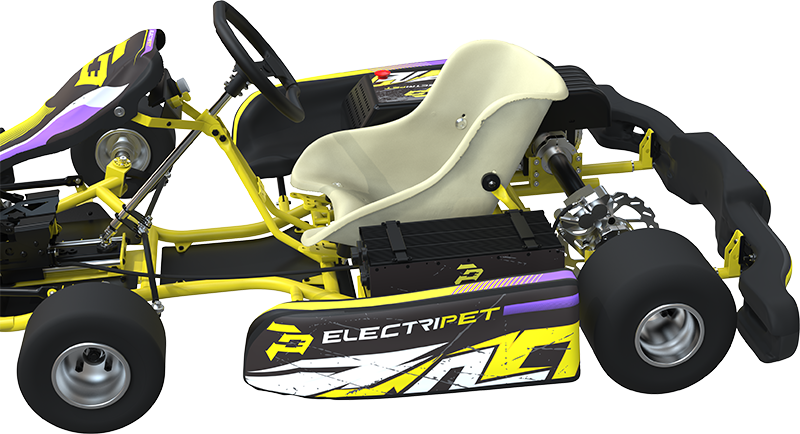

THE CHASSIS IS MADE OF 30MM AISI4130 ALLOY STEEL PIPES
4130 alloy steel has good strength and hardness, which can withstand the various forces and vibrations of the kart during high-speed operation. It can withstand the lateral forces applied by the driver during cornering, as well as the torque and impact forces transmitted by the wheels and suspension system. It is relatively lightweight compared to other steels.
DESIGNED AS SUPERCARS
The SUPEREGO has an RR design:
The rear engine and the rear-wheel-drive are set up like supercars.
The weight distribution is designed with 40% front and 60% rear.
HIGH TRACTION HOT MELT TIRE
Our racing tires are designed for high-performance driving, providing exceptional grip and handling.
Whether it's intense racing or high-speed driving, these tires offer unparalleled stability and speed.

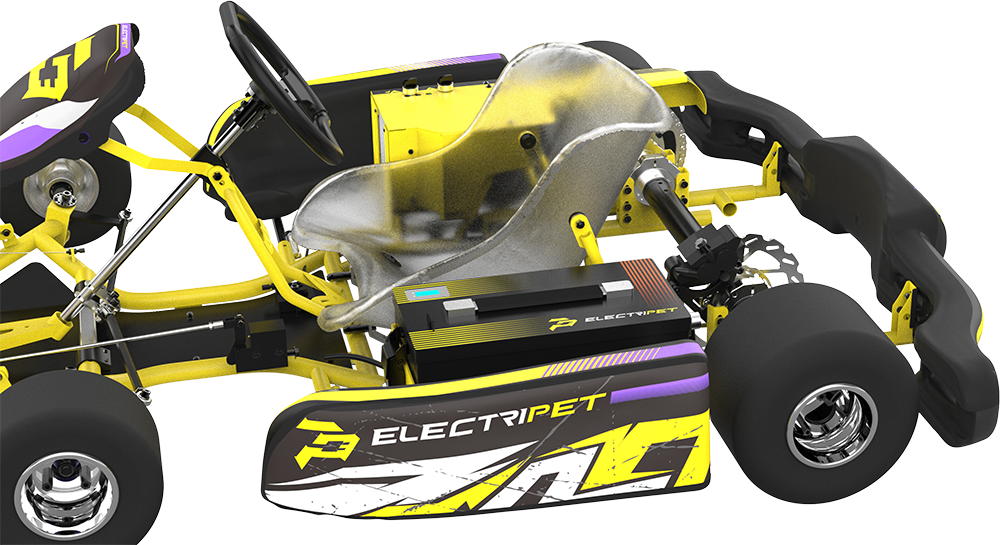

TRANSPARENT FIBERGLASS SEAT
Durable and stylish! Our fiberglass seats are made with high-strength composite materials, offering excellent durability and load-bearing capacity.

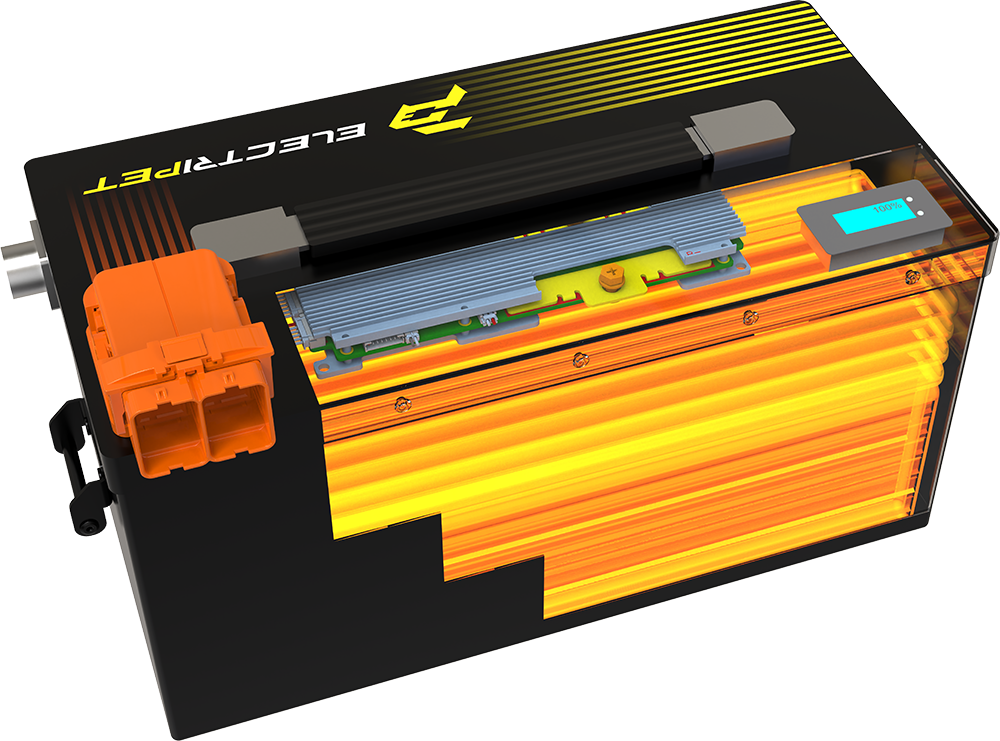

TERNARY LITHIUM BATTERY
72V 50Ah
Protection level IP67, equipped with a safe and efficient battery BMS management system.
12000W
HIGH-EFFICIENCY MID-MOUNTED MOTOR
IP67 protection level, withstanding temperatures up to 155 ° C,High efficiency,Rapid response,Exceptional stability and precision ,Long life and low maintenance costs.

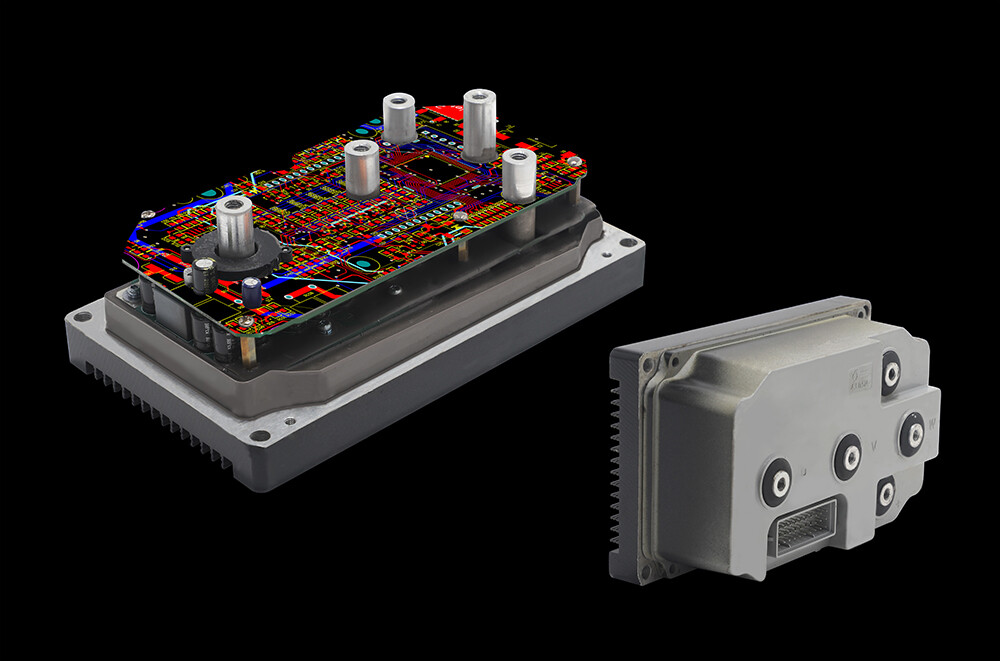

REALIZE KINETIC ENERGY RECOVERY, REAL-TIME MONITORING OF SPEED AND TORQUE
IP67 protection level, I / O port anti-interference design ，Reliability and stability ，Ease of Maintenance and Upgrade.

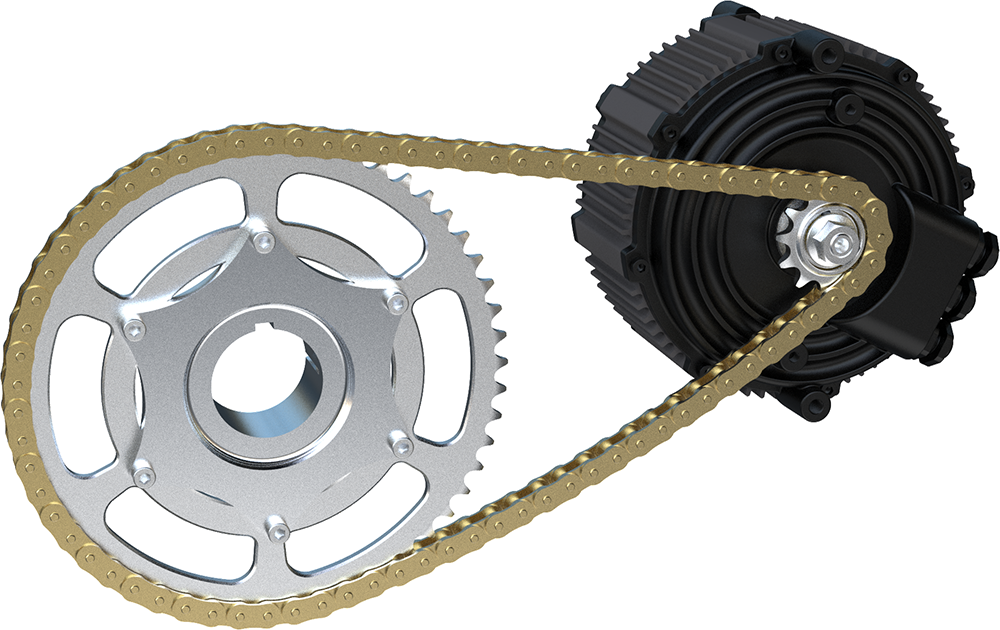

CHAIN DRIVE
High efficiency, direct power transmission : experience real-time feedback of power output,enhancing driving Experience,Durability,low cost,safety and reliability.
REAR BRAKE DISC
227mm solid brake disc with 4-piston caliper and sintered brake pads，More flexible and safer braking，Give you enough confidence in your control.

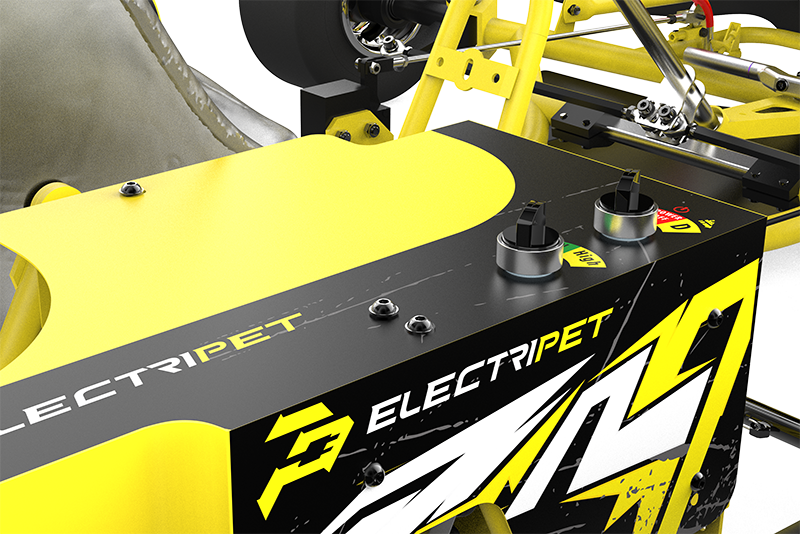

BUTTON
Knob switch,Integration forward and backward,high-speed and low-speed modes.

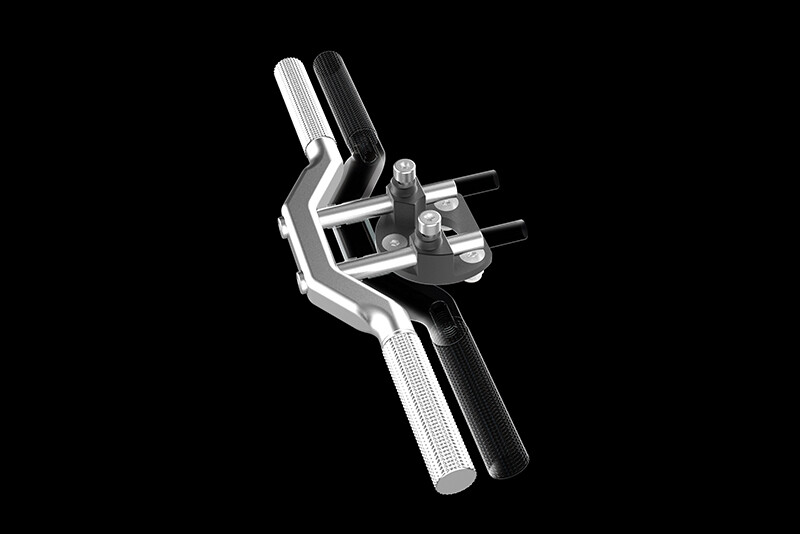

MOVABLE FOOT LEVER
Adjust lever according to the driver 's height and seat position, enhancing comfort and control of braking and acceleration.

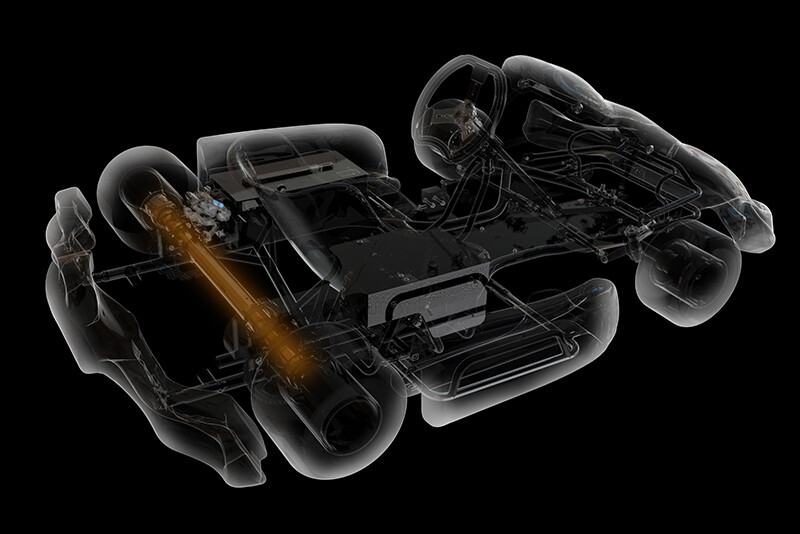

REAR AXLE
The diameter of the rear axle is 50mm and the length is 1040mm. Ensure the rear wheels maintain stability and predictable movement during driving.

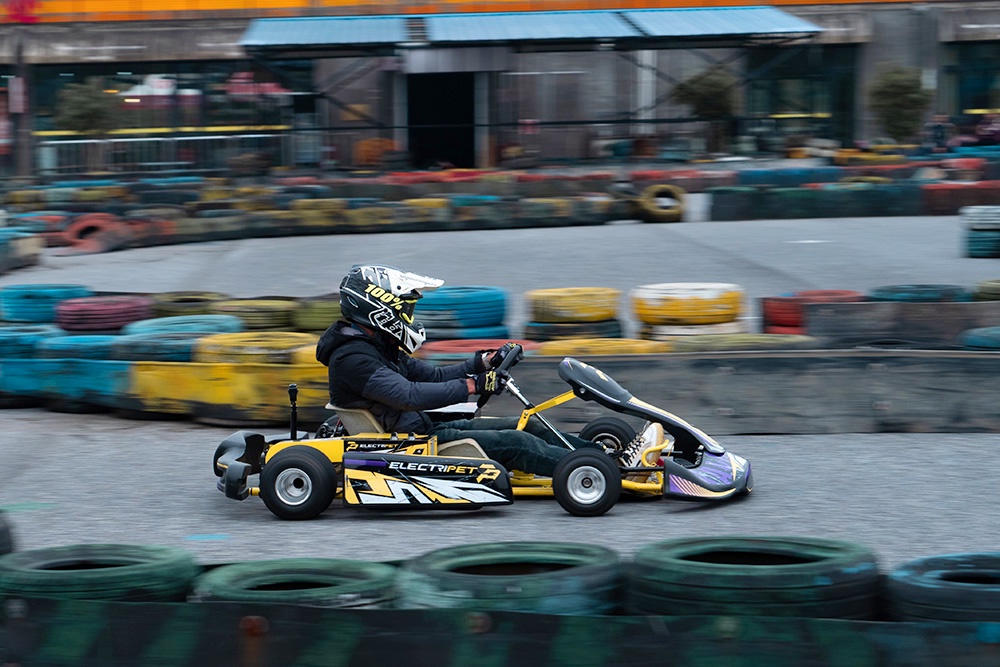

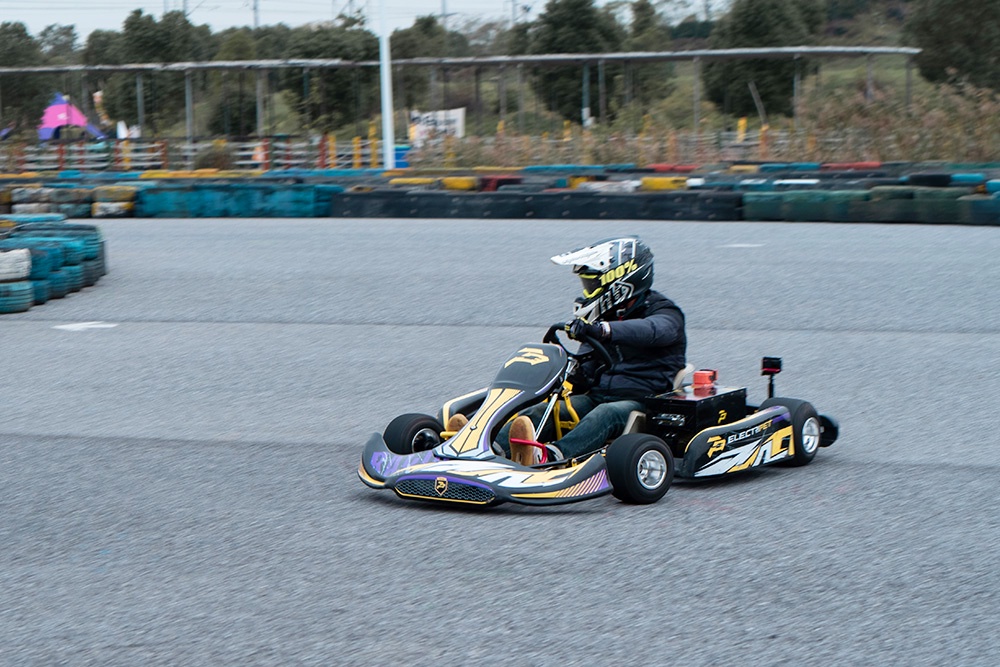

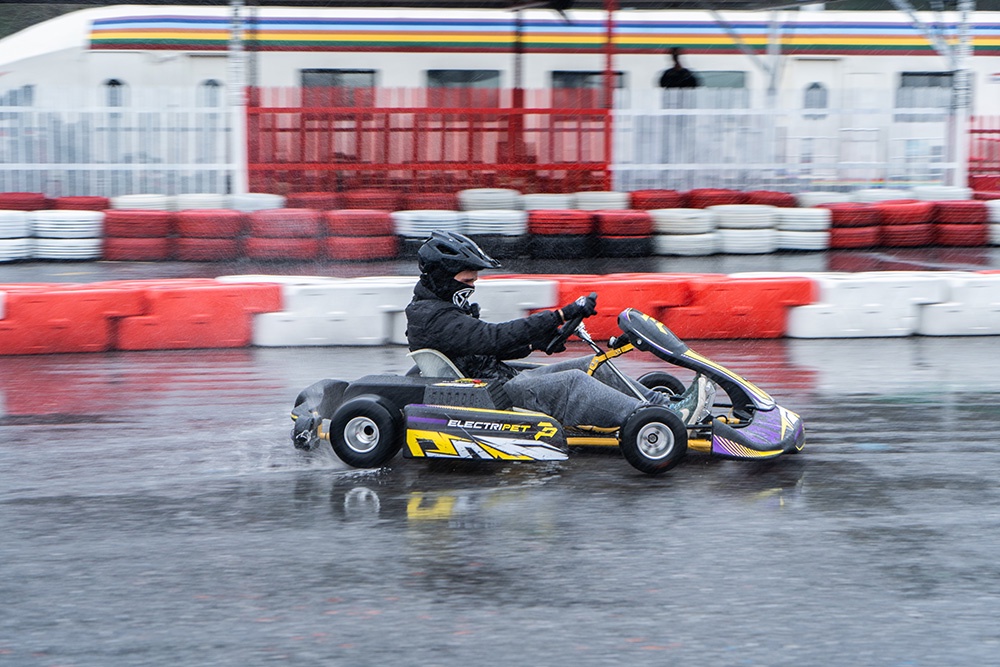

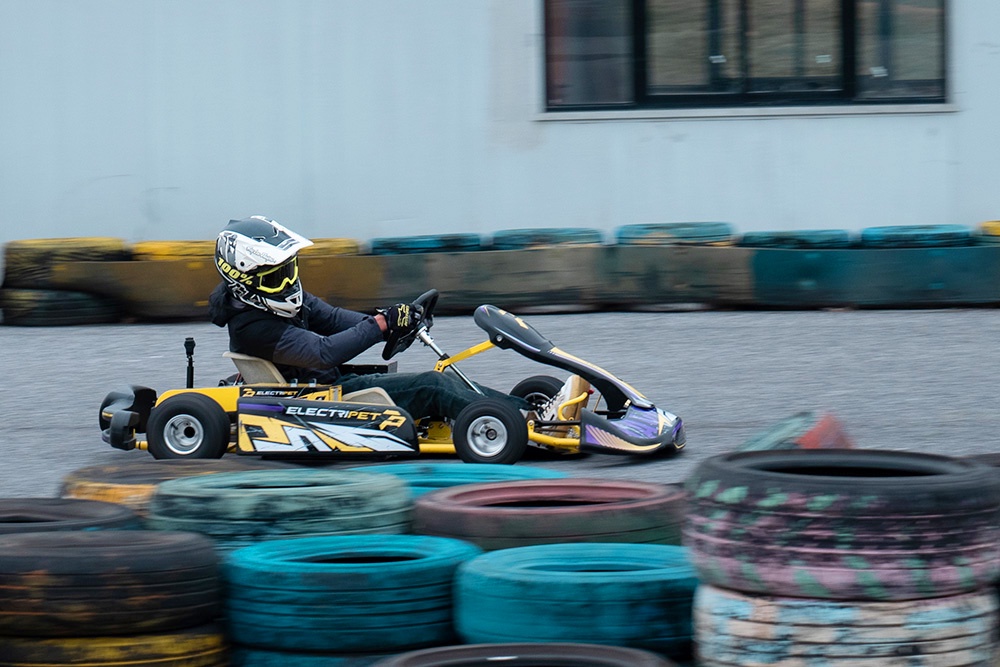

NO NOISE,
LIGHTNING FAST!

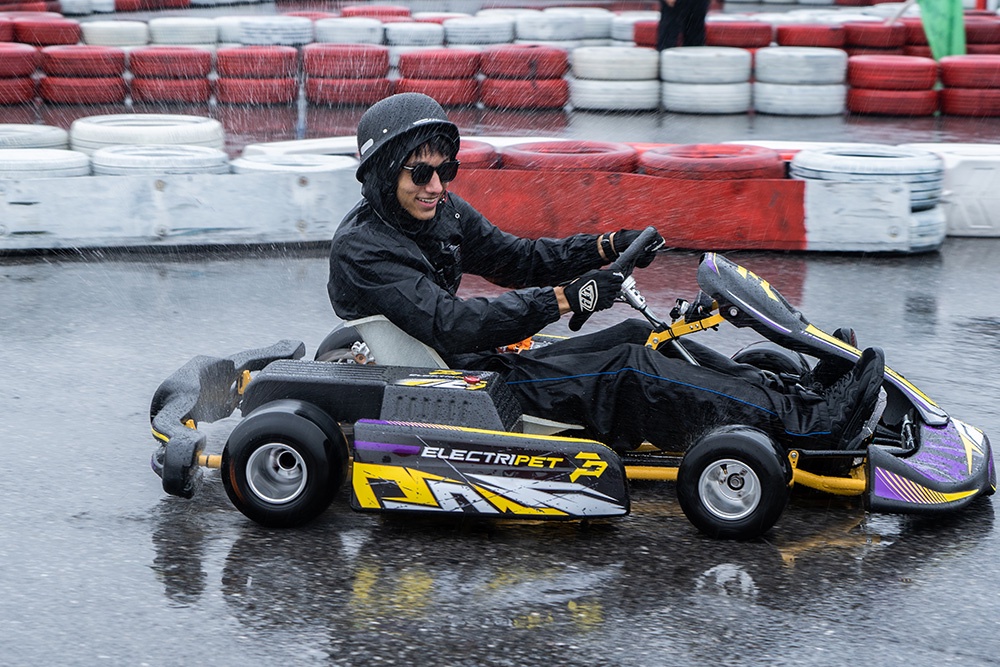

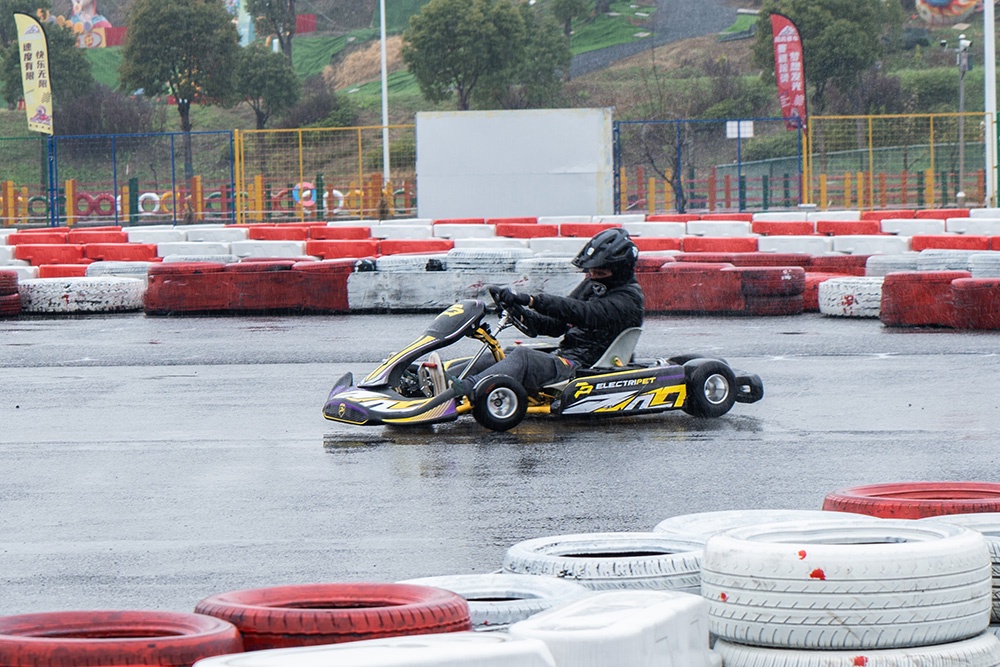

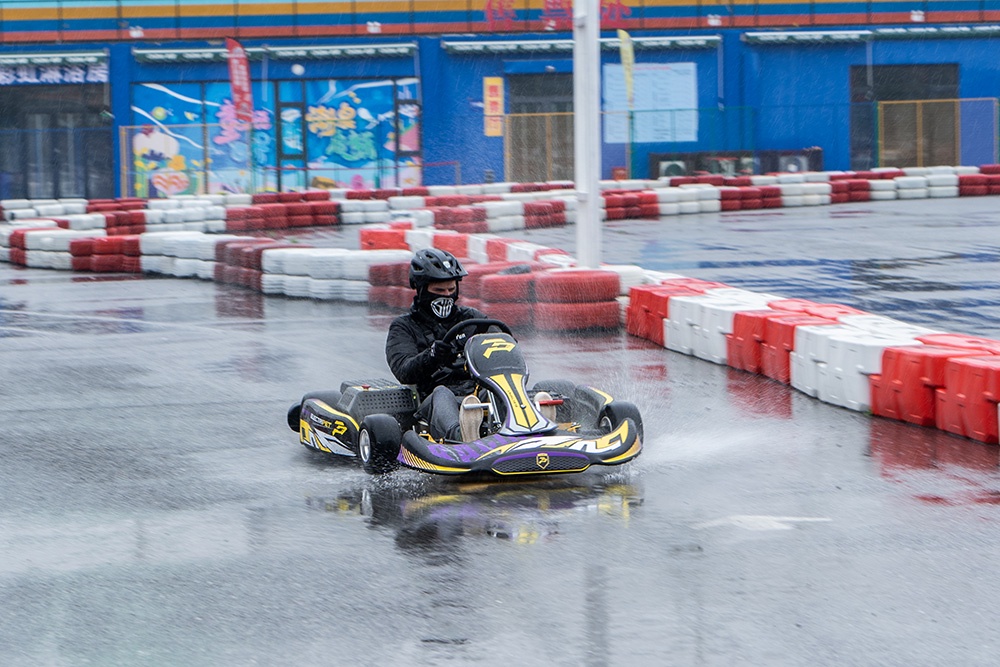

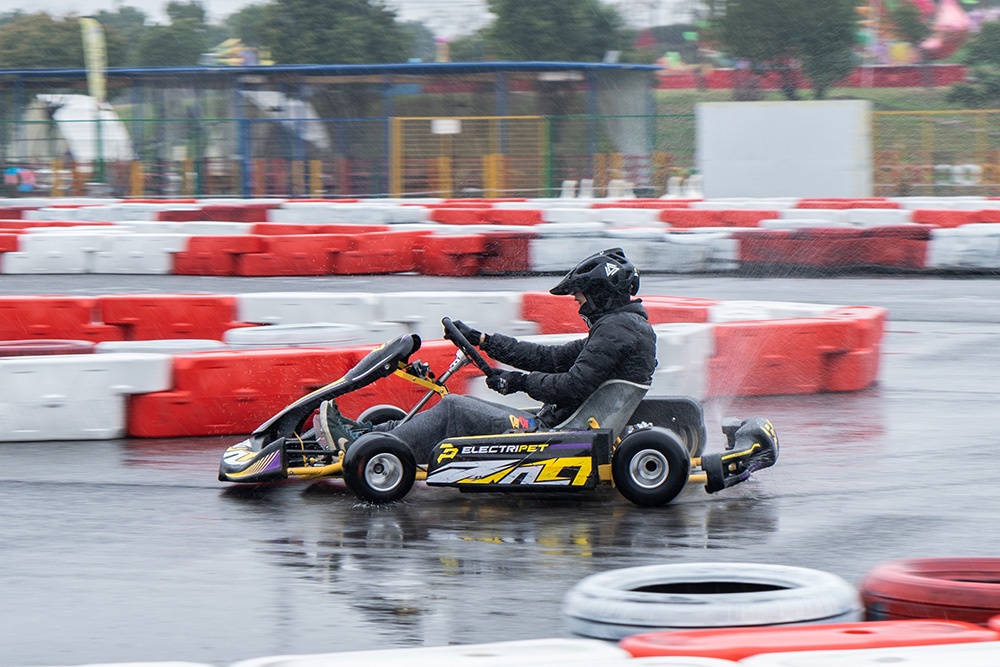

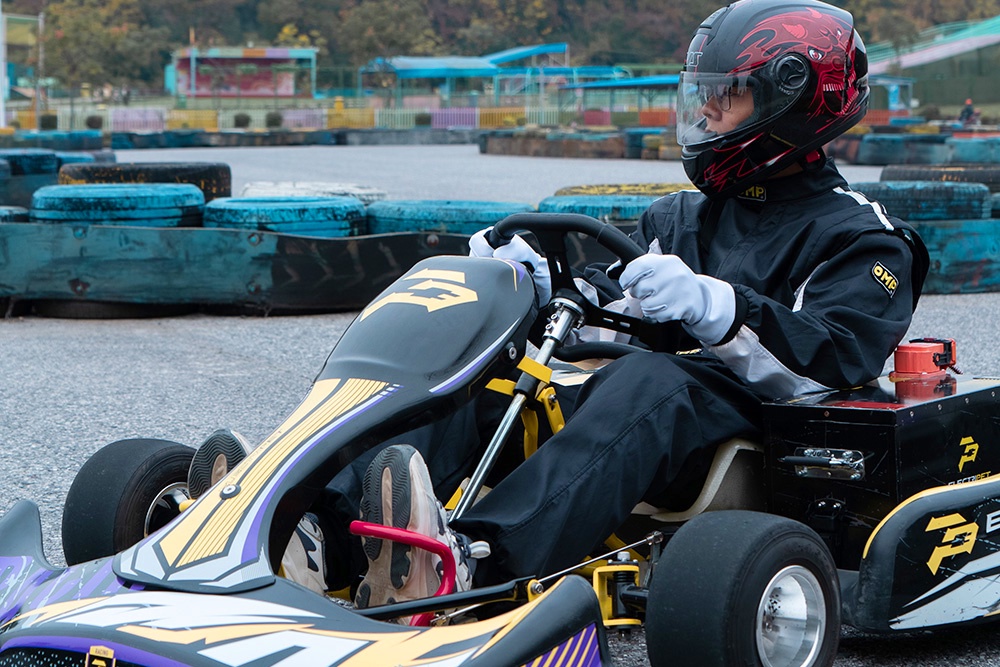

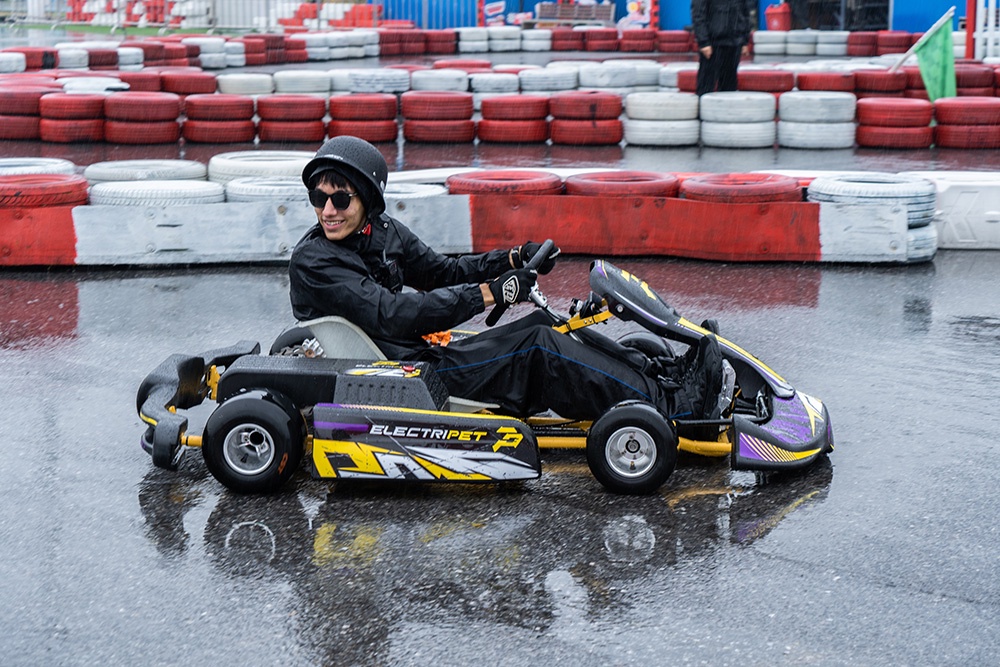

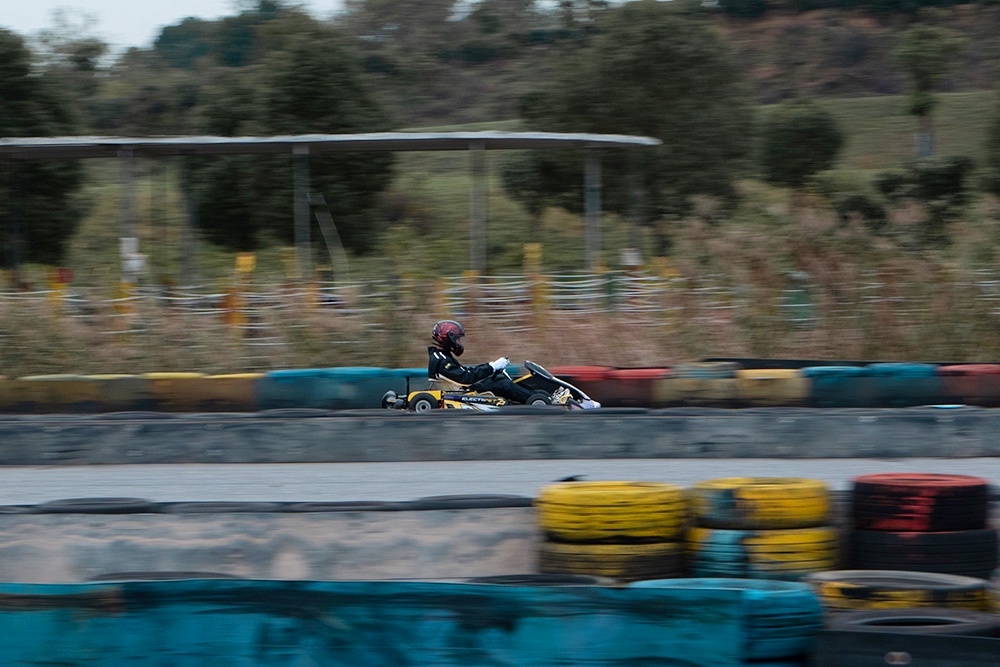

Experience unprecedented high-speed thrills on the go-kart track with our electric go-karts.
QUIET BUT POWERFUL
8.Experience the perfect performance of ego-karts, No noise, just speed!
Parameter Details
| Model Name | SuperEgo SE | SuperEgo S |
| Curb Weight （Battery Included） | 110 kg (242.5 lbs.) | 107.5 kg (236.9 lbs.) |
| Ground Clearance | 30 mm (1.1 inch) | 30 mm (1.1 inch) |
| Frame Material | Cr-Mo Steel Pipe | Cr-Mo Steel Pipe |
| Rear Axle Material | 50mm Grade 45 Steel Pipe | 50mm Grade 45 Steel Pipe |
| Brake System | Race Grade Hydraulic Brake Kit | Race Grade Hydraulic Brake Kit |
| Transmission | Chain-Drive | Chain-Drive |
| Wheel Material | Aluminum Alloy | Aluminum Alloy |

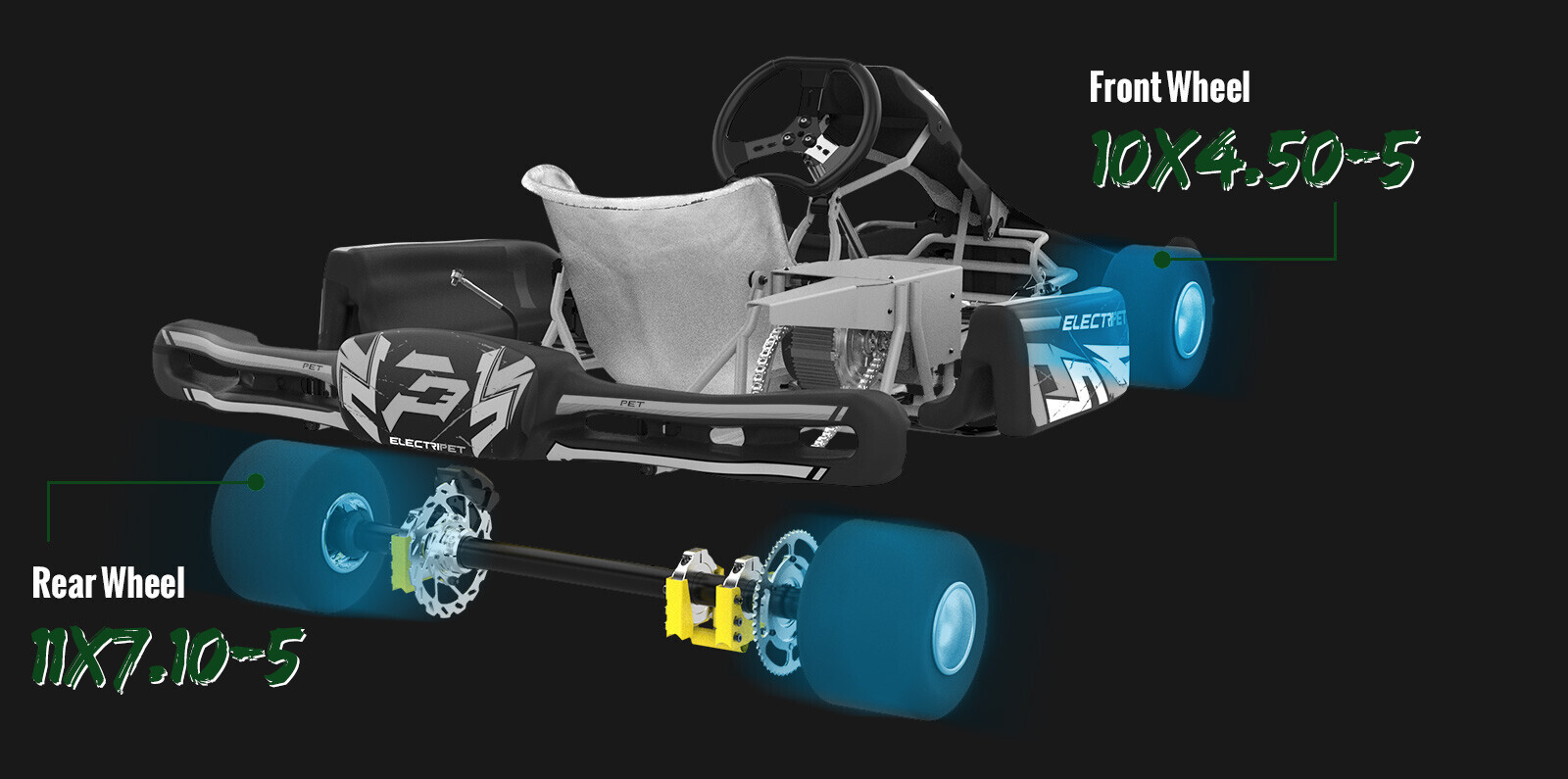

| Tire Size | FR. : 10x4.50-5 RR. : 11x7.10-5 |
FR. : 10x4.50-5 RR. : 11x7.10-5 |
| Seat Material | Glass Fibre | |
| Range | 10 laps=12 km @ 80 km/h (7.45 miles @ 49.7 mph) |
10 laps=12 km @ 60 km/h (7.45 miles @ 37.2 mph) |
| High Speed | 80 km/h (49.7 mph) | 60 km/h (37.2 mph) |
| Low Speed | 60 km/h (37.2 mph) | 40 km/h (24.8 mph) |
| Power System | PMSM+ FOC Sinewave Controller | |
| Rated Power / Peak Power | 6 kW / 12 kW | 4 kW / 8 kW |
| Torque | 190 N.m | 170 N.m |
|
Assistant Functions |
APP Connection |
|
|
Multiple Riding Modes |
||
| Starting | Power Switch | |
| Battery | 72V/50Ah Lithium-ion | 60V/55Ah Lithium-ion |
| Charging Time | Fast : 20-80 % In 2 Hours Slow: 0-100 % In 4.5 Hours |
|
| Dimension | 2000mm x 1400mm x 600mm (78.7 inch x 55.1 inch x 23.6 inch) | |
NOTE：The final parameters are subject to mass production data.
