TECHNICAL SPECIFICATIONS
130Km/h
Max Speed
11KW
Rated Power
22KW
Peak Power
84V 110Ah
Battery
349N.m
Torque
180Km
Range
7S
0-100m
6H
Charging Time

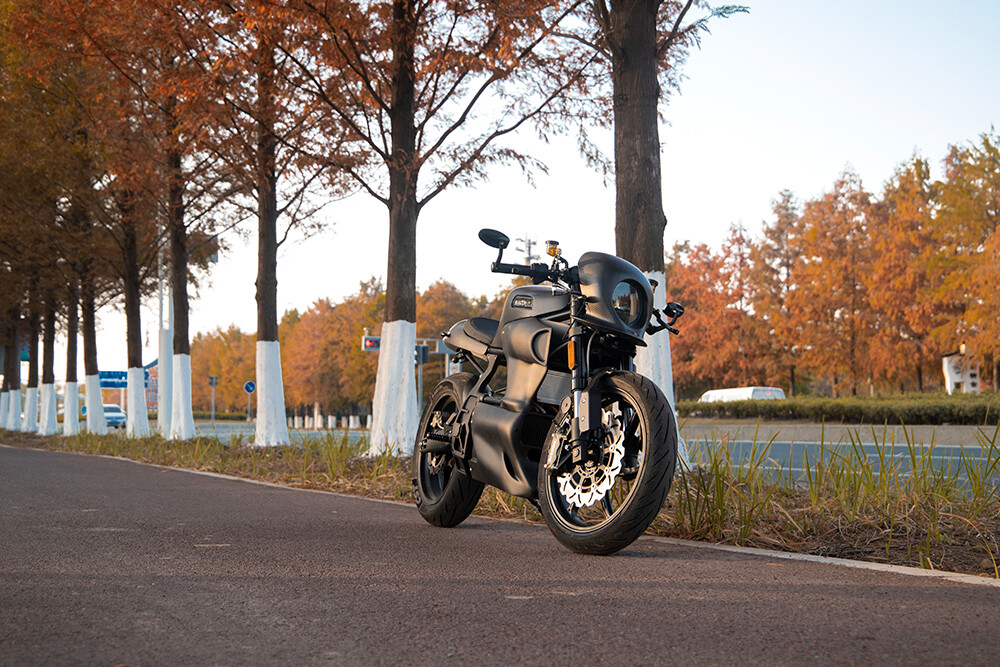

RUGGED MOUNTAIN ROADS & DARK FOREST ROAD & URBAN STREETS
GRASSHOPPER OPENS THE WAY

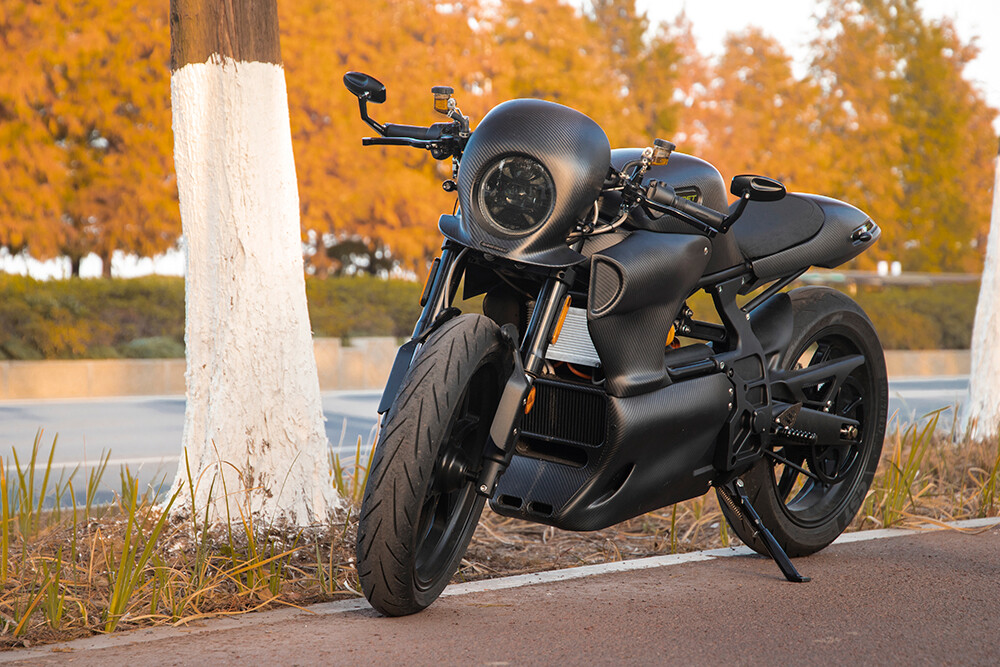

RETRO STYLE,
NEW RIDING EXPERIENCE!
The perfect combination of classic design and modern technology.

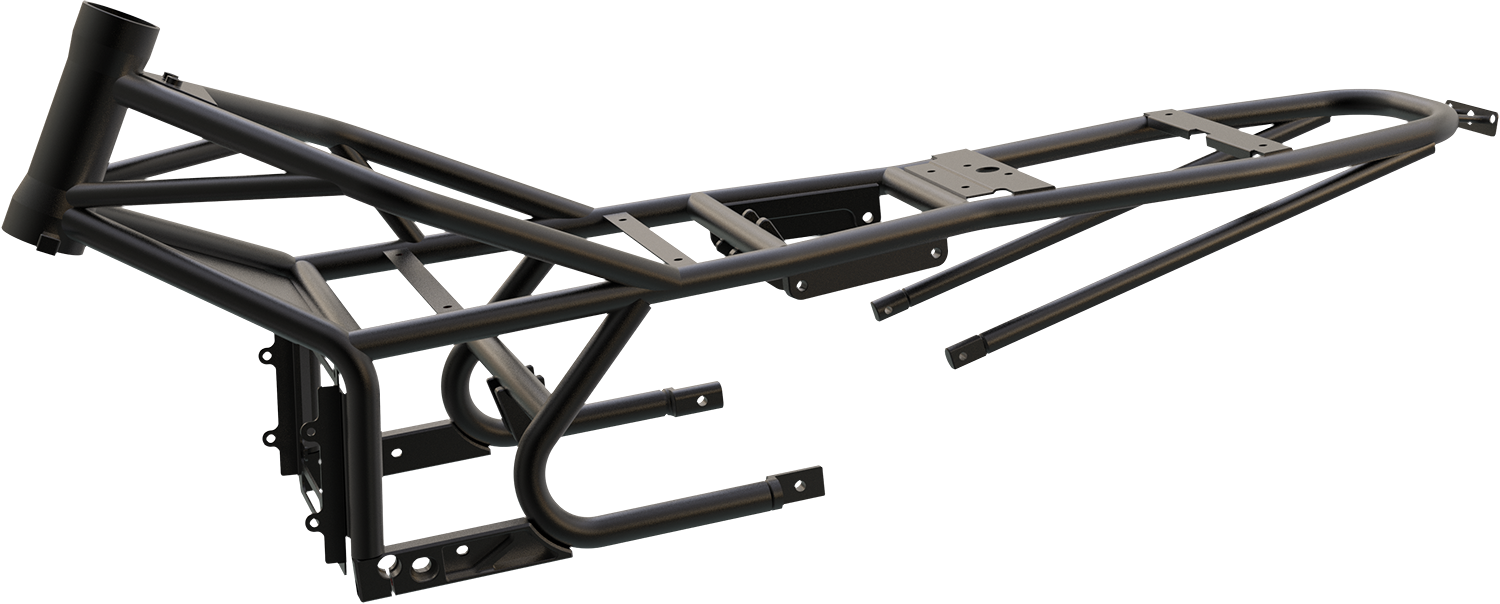

HIGH-STRENGTH STEEL FRAME
High strength Cr-Mo Steel tubes,height adjustable

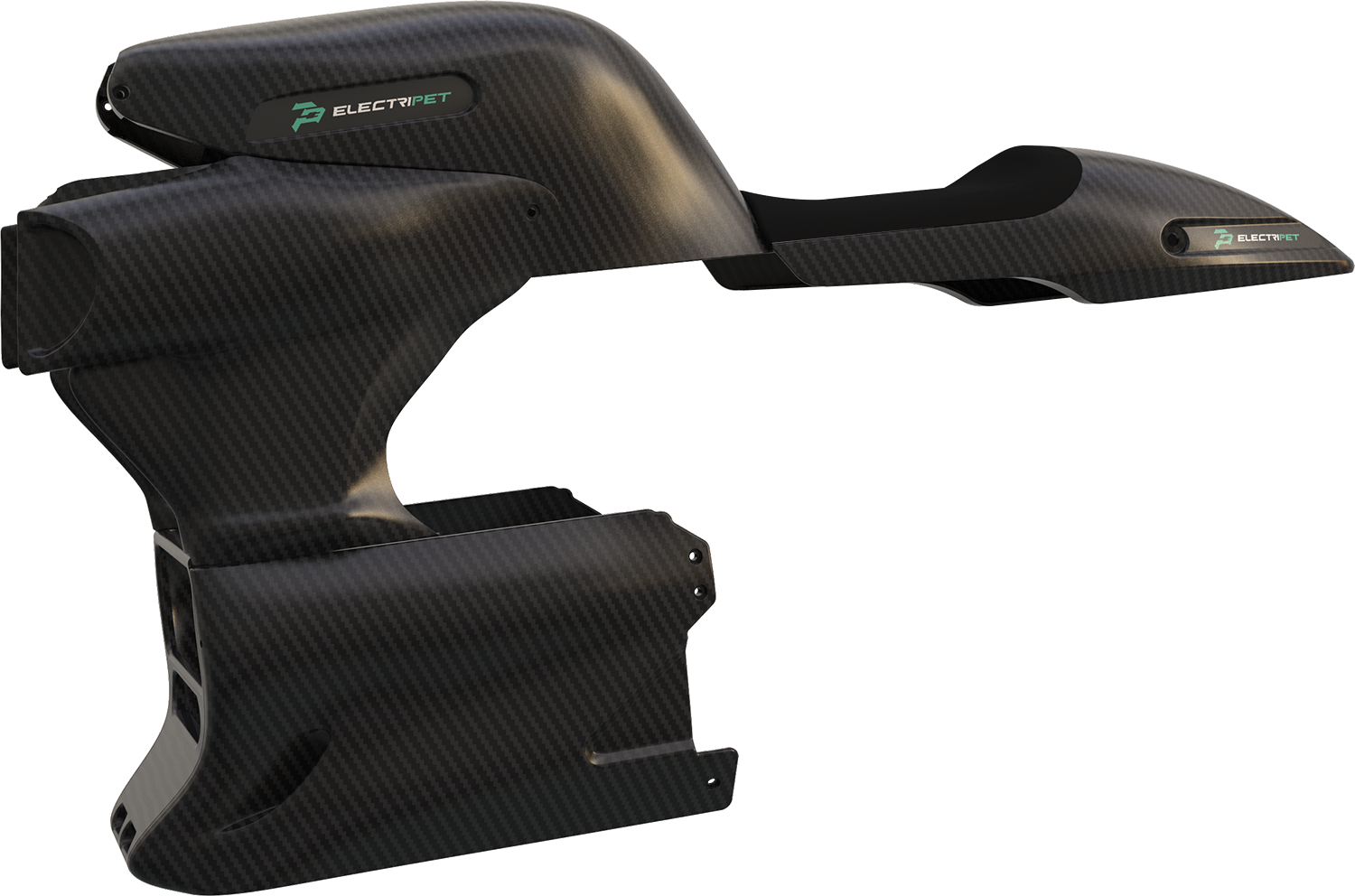

CARBON FIBER BODY
High-strength carbon fiber material,light and durable.
The streamlined design of the body is not only beautiful,also reduces wind resistance.
22000w

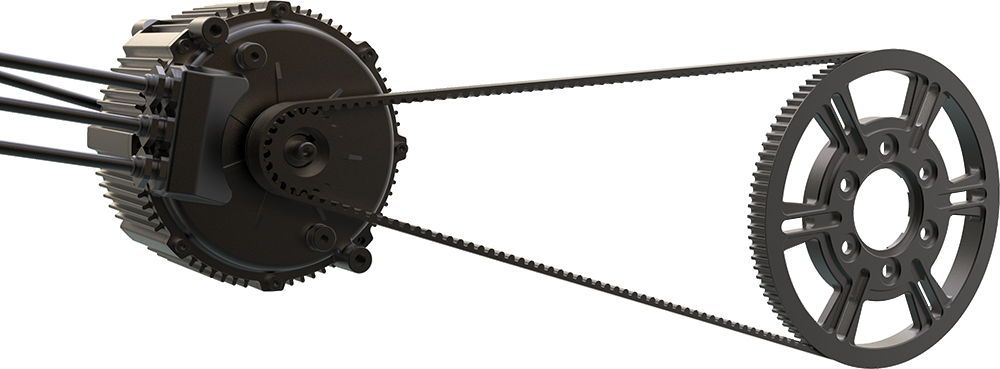

HIGH-EFFICIENCY MID-MOUNTED MOTOR
IP67 protection level, can withstand a maximum temperature of 155°C.

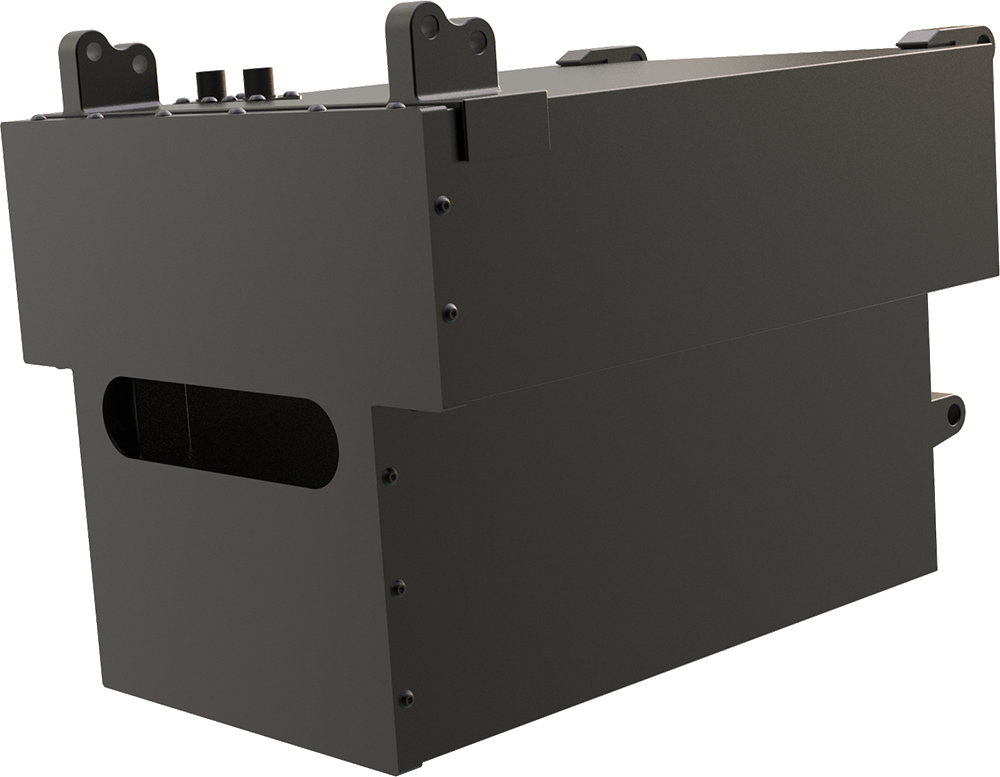

LITHIUM BATTERIES
Protection level IP67, equipped with a safe and efficient battery BMS management system, which not only ensures sufficient power and stable output, but also ensures safe output of the battery pack and extends its service life.
84V110AH

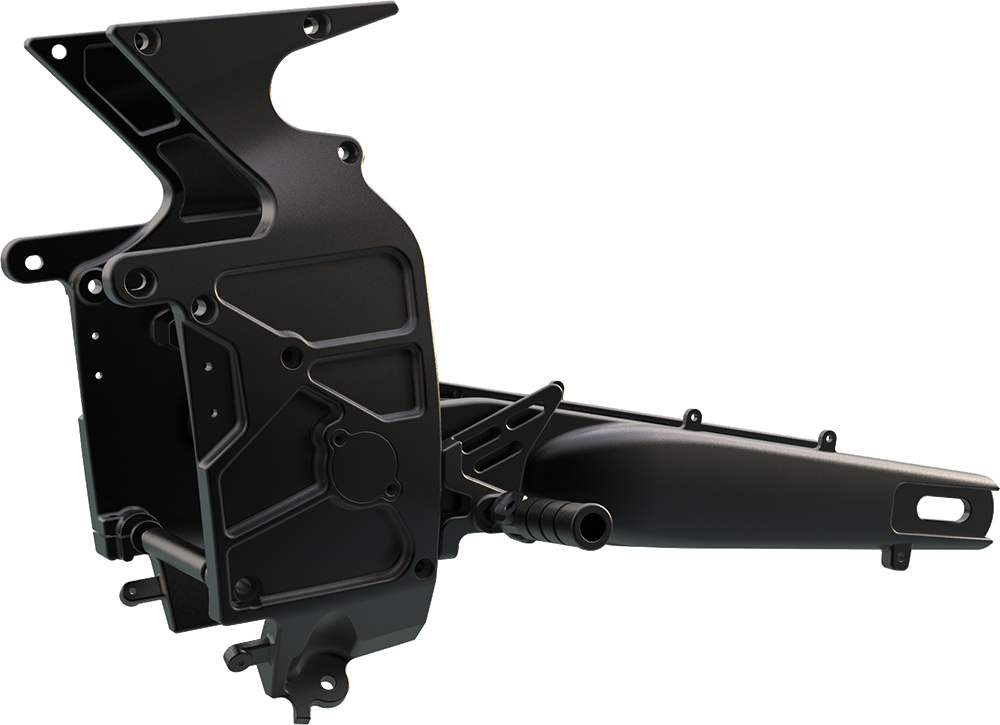

CNC BODY
CNC aluminum body provides excellent performance and durability. Not only ensures lightweight,also enhances the structural strength of the vehicle,enabling it to easily cope with various complex terrains and perfectly meet the needs of long-distance travel.

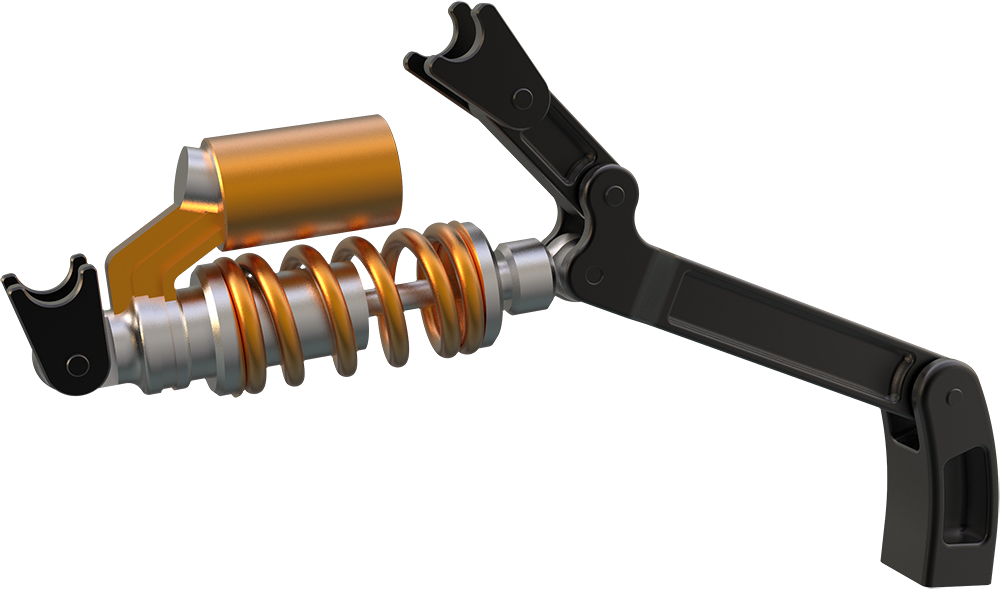

CONNECTING ROD STRUCTURE
Higher strength and lighter weight Aluminum alloy connecting rod structure design.

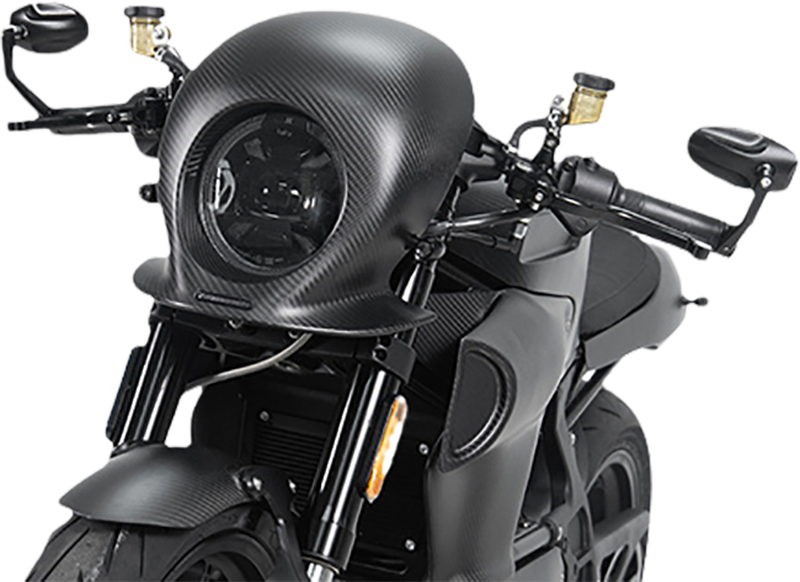

LED LENSES HEADLIGHT
High efficiency and energy-saving with wider visibility!
LED
LIGHTING

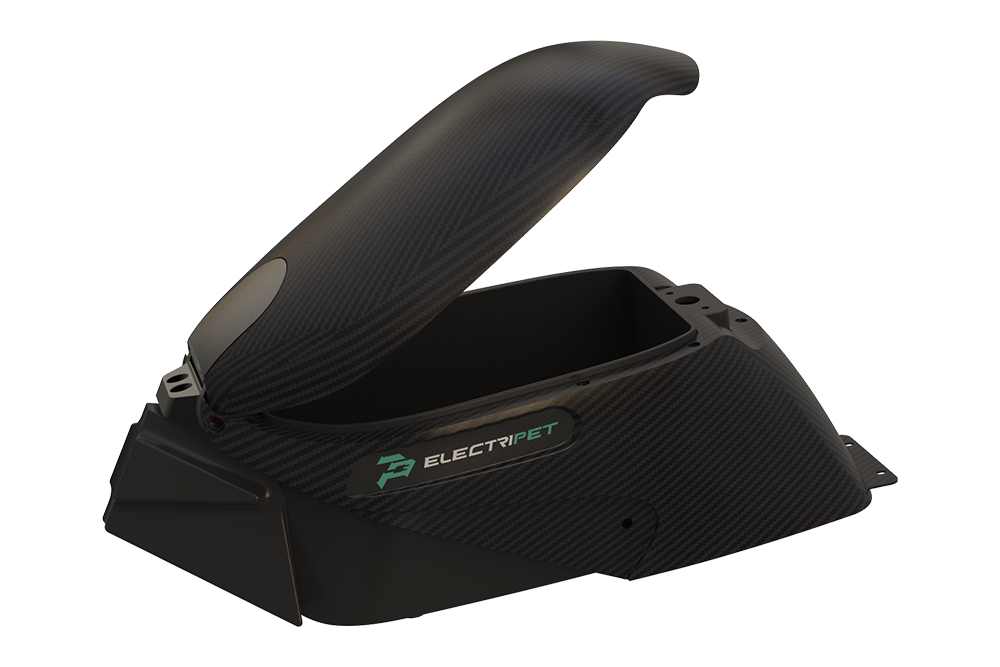

• Storage Box

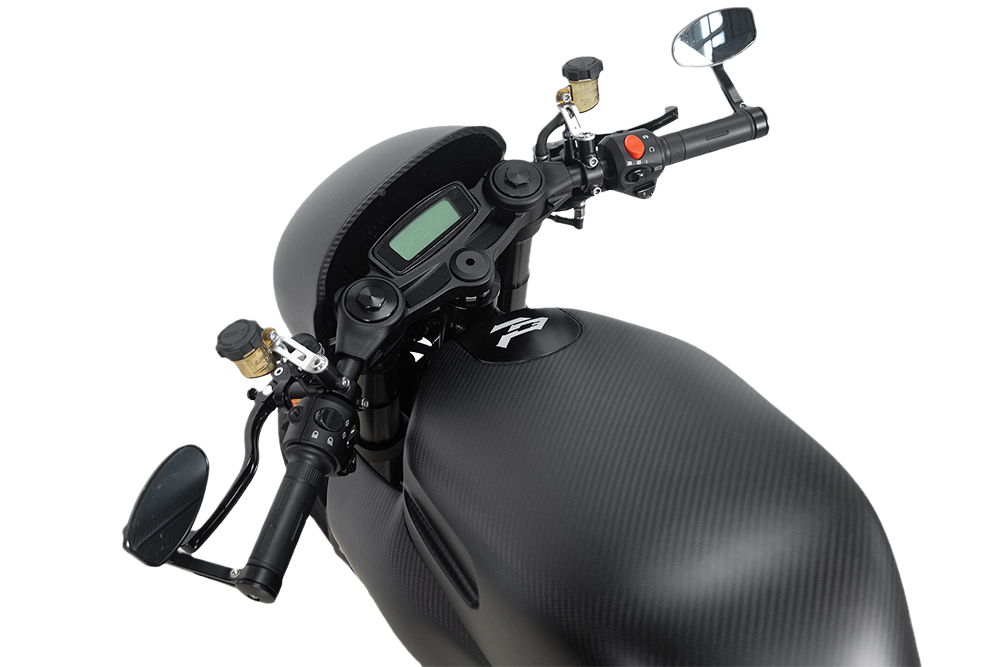

• Digital Dash
BRAKE
BRAKE SYSTEM
Powerful braking system puts you in complete control of your riding rhythm. Whether you're carving corners, avoiding obstacles or slowing down quickly, responsive brakes deliver the stopping power you need for intense riding conditions.

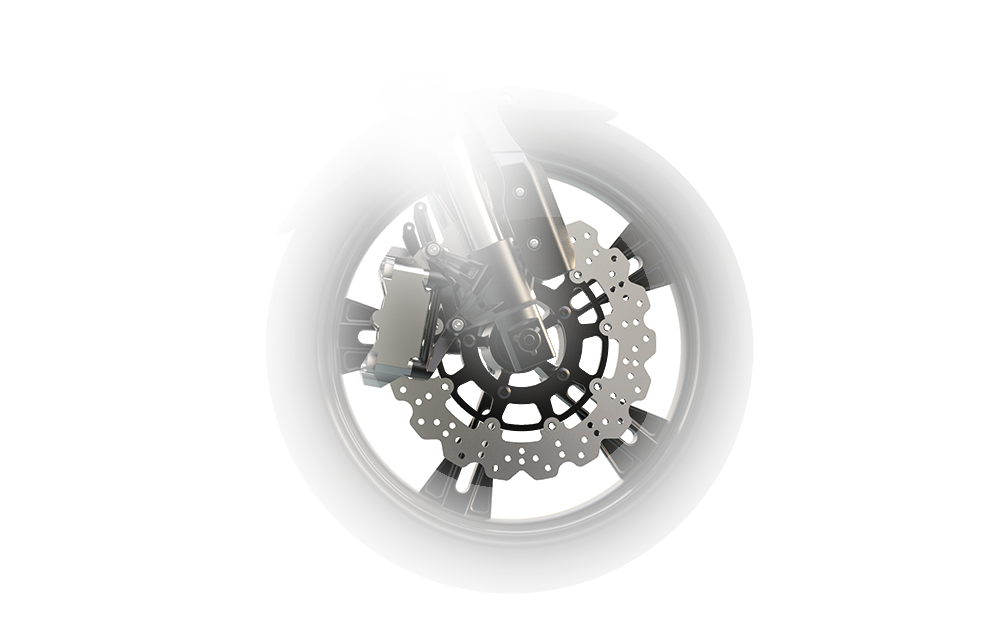

310mm

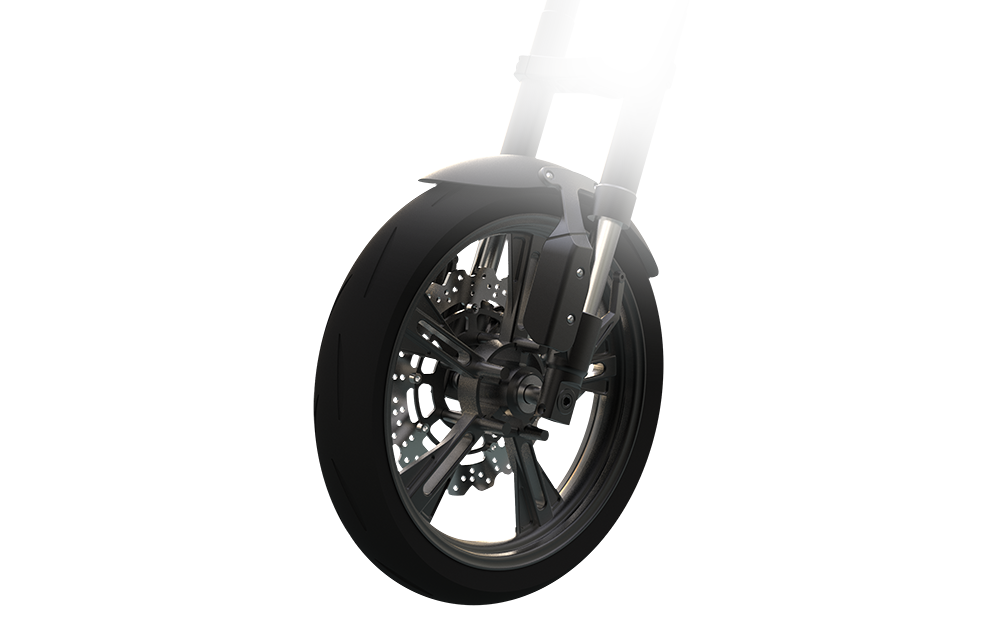

310 MM FLOATING FRONT DISC BRAKE
215mm

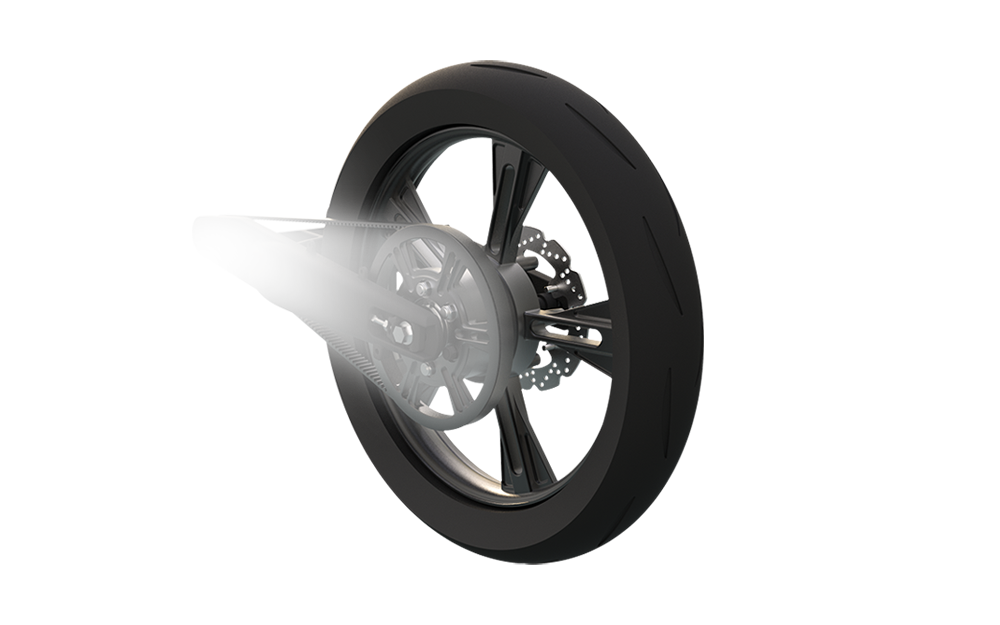

215MM REAR SOLID DISC BRAKE
17inch
17 INCH CASTING ALUMINUM FRONT WHEELS
17inch
17 INCH CASTING ALUMINUM REAR WHEELS
SMART
INTELLIGENT CONTROL SYSTEM
FOR FOR ELECTRIPET
Our vehicle intelligent control system integrates advanced technology and innovation to provide comprehensive driving assistance and safety protection through real-time monitoring and intelligent analysis of vehicle status.

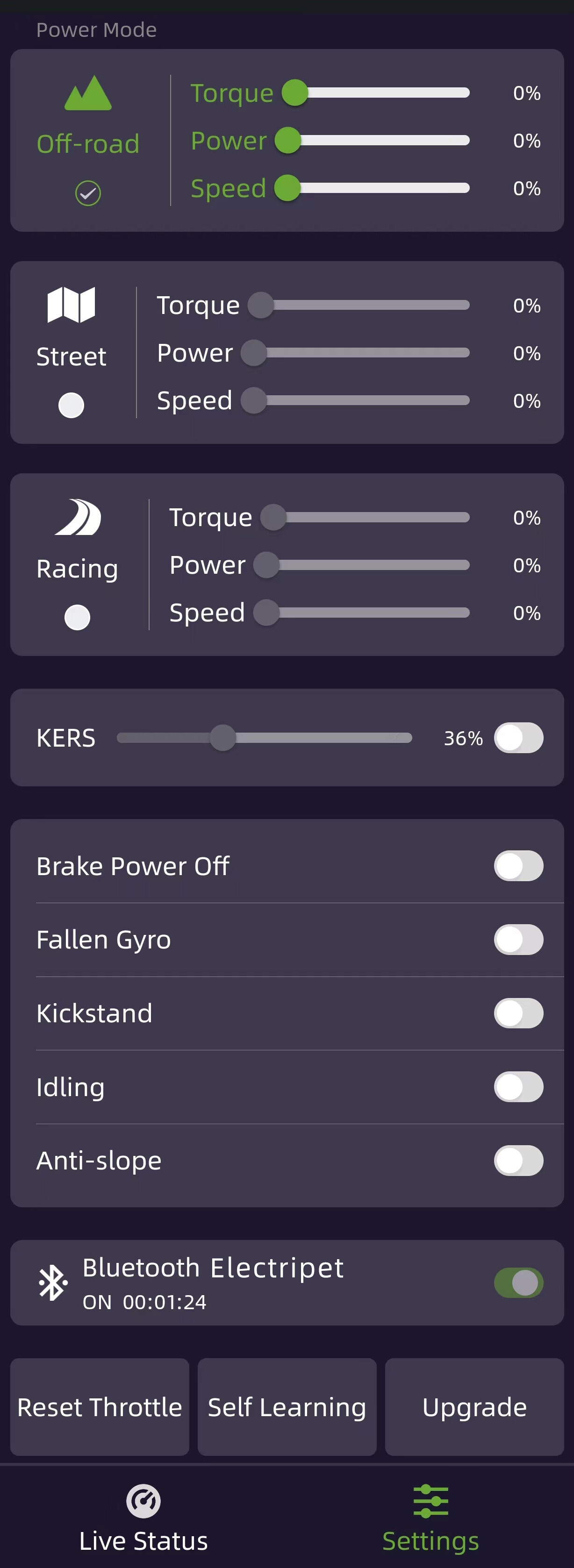

MULTIPLE RIDING MODES
Provides three power adjustment modes: off-road, street, and racing, and you can freely choose the riding mode.
MULTI-STAGE ENERGY RECOVERY
When braking, the battery is reversely charged through the motor and the wear of the brake system is reduced.

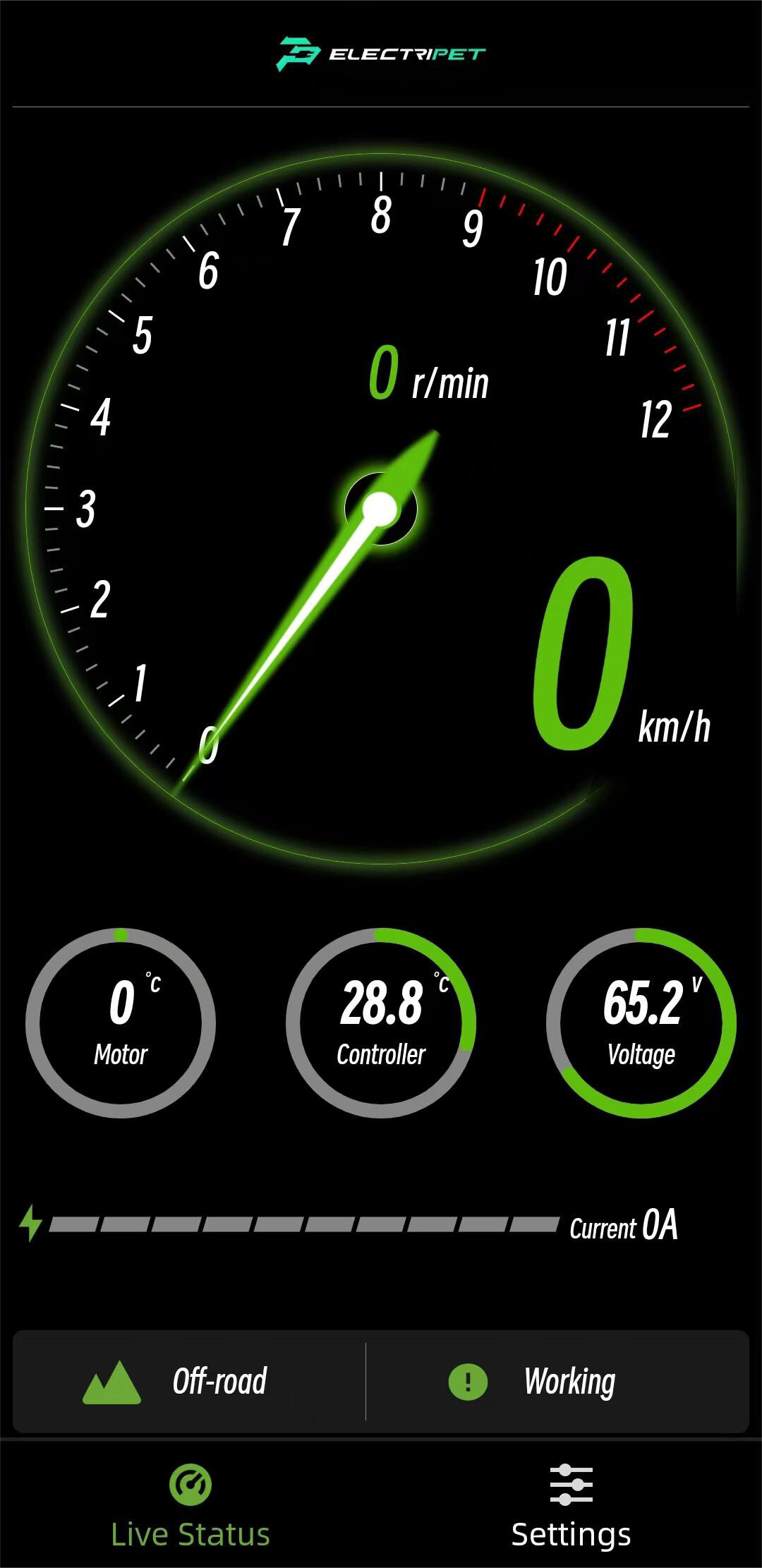

APP CONNECTION
Allows administrators to control vehicles via mobile devices.
REAL-TIME UPDATE
Real-time update of your vehicle's usage status.
Parameter Details
| Curb Weight (Battery Included) | 210 kg (462.9 lbs.) |
| Carrying Capacity | 150KG (330.6 lbs.) |
| Ground Clearance | 165 mm (6.49 inch) |
|
Wheel Base |
1370 mm (53.9 inch) |
|
Seat Height |
760 mm (29.9 inch) |
|
Frame Material |
Steel Pipe + Aluminum Alloy |
|
Brake System |
FR. : 310 mm Floating Disc Brake RR. : 215 mm Solid Disc Brake |
|
Transmission |
Belt drive |
|
Wheel Material |
Aluminum Alloy |
|
Tire Size |
FR. : 100/90-17 RR. : 140/70-17 |
|
Max Speed |
130 km/h (80.7 mph) |
|
0-50km/h Acceleration |
7 Seconds |
|
Range |
180 km @70 km/h (111.8 miles @ 43.4 mph) |
|
Power System |
PMSM (Mid-Drive) + FOC Sinewave Controller |
|
Rated Power / Peak Power |
11 kW / 22 kW |
|
Torque |
349 N.m |
|
Battery |
84V/110Ah Lithium-ion |
|
Charging Time |
6 Hours |
|
Assistant Functions |
APP Connection |
| Multiple Riding Modes | |
| Multi-stage Energy Recovery | |
| LED Lighting | |
|
Dash |
IP67 4.0-Inch TFT LCD |
|
Dimension |
1965mm x 663mm x 959mm （77.3 inch x 26.1 inch x 37.7 inch） |
NOTE：The final parameters are subject to mass production data.
